Honda Generators Enclosure Exhaust Systems

The Generator-Line  Enclosure Exhaust System
allows the enclosure of the Honda EU generators into an outbuilding for security,  weather protection, and additional sound reduction.  The EU2000i/20i,  EU3000is/30is series exhaust kits direct both cooling and exhaust together through the flexible and expandable aluminum tube.  The EU6500is and new fuel injected EU7000is (EU65is/EU70is) kit has a separate exhaust adapter and flexible pipe that attaches to the exhaust outlet (also available separately – see components)  Combine with a wireless remote control for ultimate convenience.

EUX2-Exhaust-System

EUX2 exhaust system includes high heat, thermo-formed custom fit polycarbonate shroud with riveted on collar, 30 inch long, 4 inch diameter flexible aluminum tube, worm clamp, and self-tapping screws for attachment. Illustrated, color installation instructions included. Fits the EU2000i/EU2200i Honda Generator.

$210.00

EUX3-Exhaust-System

EUX3 exhaust system includes high heat, therm-formed custom fit polycarbonate shroud with riveted on collar, 32 inch long, 5 inch diameter flexible aluminum tube, worm clamp, and self tapping screws for attachment. Illustrated, color installation instructions included.

$225.00

EU65 Exhaust System

EUX70 cooling air exhaust system for EU6500is and EU7000is (EU65is/EU70is) includes high heat, thermo-formed custom fit polycarbonate shroud with attached collar, 32 inch long, 5 inch diameter flexible aluminum tube, worm clamp, and self tapping screws for attachment. Combustion exhaust system #EUX70GP (also available separately) includes custom exhaust adapter, U-clamp, gaskets, allen screws with wrench, and 3 feet of 1 inch diameter flex exhaust!

$289.00

Honda Generator Exhaust Accesories

The Generator-Line Enclosure Exhaust System provides a shroud made of poly-carbonate in black with a temperature tolerance of 250 F.  The shroud captures both cooling and exhaust air emissions for the EU2000i & 3000is and cooling air exhaust emission on the EU6500is/EU7000is.  Simply attach the shroud with provided self-tapping screws to the black plastic sound cover of the generator.  The holes are pre-drilled in the shroud to be used as a template.  The collar comes riveted to the shroud, then attach the flexible, expandable aluminum tube to the collar with the worm drive clamp.

combustion-exhaust-EU7000is-EU6500is

2GDV features two kits, providing the exhaust attachment to the Honda EU6500is/EU7000is and a wall outlet attachment also with a “U” clamp and high temp weather proof gaskets.

$195.00

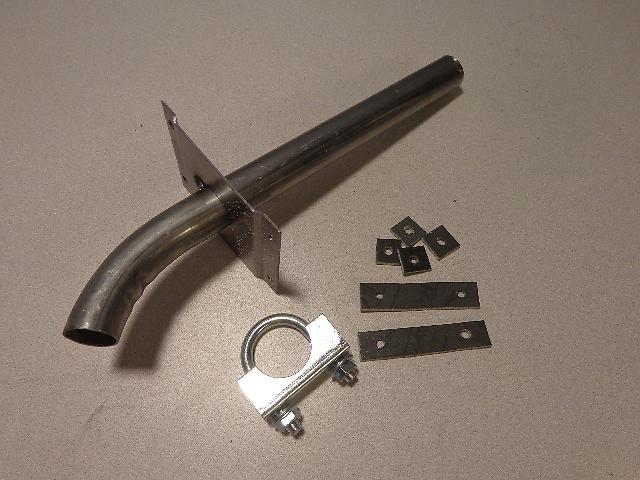

EUX70-EUX70GP-Exhaust-Wall

1GDV Wall mount attachment for the EUX70 & EUX70GP systems. Includes high heat gaskets, washers, and clamp.

$110.00

4GDV-Wall-Vent

4GDV 4″ Wall vent for EUX2.
Includes stainless worm clamp and pre-crimped.

$50.00

5GDV 5″ Wall vent For EUX3, EUX70
Includes stainless worm clamp and pre-crimped

$50.00

EUX70GP-Honda-Combustion-Exhaust

EUX70GP For the EU6500IS/EU65IS and EU7000is/EU70is
Exhaust Only. Includes Custom Exhaust Adapter of Durable 14 Gauge Steel, High Temp Grafoil Gaskets, Exhaust Clamp, 33 Inch Flex Exhaust Pipe, Hex Screws and Wrench, and Install Instructions.

$98.00

EUX70SD Cooling System

EUX70SD
Cooling Air Emission Components for emitting only the heated cooling air on the EU6500is and the EU7000is Honda generators. Also includes 32 inch aluminum flex tube and worm clamp.

$190.00

Extended Run Fuel Line Only

Extended Run Fuel Line Only – for the Honda EU1000i, EU2000i, and EU2200i

$59.00

EU2-Honda-Generator-Enclosure

Exposed view of generator “enclosure” for depiction only in utilization of directional cooling air flow and exhaust. Use heat resistant material for the construction of your enclosure. An air intake vent must be provided most preferably on the control panel side of the generator.

Exhaust Enclosure Example

The EU2000i, EU2200i and EU3000is use 4 and 5 inch flexible, aluminum tubes respectively. Because the aluminum tube carries hot exhaust gas as well as emitted, heated cooling air, it can get hot and must be mounted to material that can withstand high temperature. The separate exhaust pipe on the EU6500is and EU7000is must also be routed along material that can withstand high heat to prevent damage or even fire

The cooling air intake for the EU series generators is at the control panel side and emits with exhaust at the opposite side around the muffler (EU2 & 3) and separate upper rear vent on the EU6500is/EU7000is.

!Warning! Engine exhaust can kill you in minutes. Never operate the generator in or near a living space. The exhaust systems are designed for outbuildings and enclosures specifically for the generator only. Abide by manufacturer warnings.
